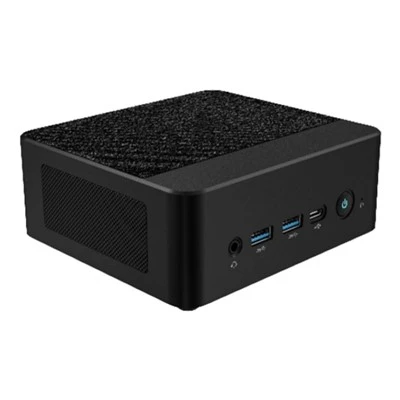

Qhov noNUC host mini PCtxhawb IntelAlder Lake thiab Raptor Lake U / P / H series CPUs, xa cov kev suav muaj zog rau kev ua haujlwm ntau, ua haujlwm hauv chaw ua haujlwm, automation systems, thiab kev lag luam siv.
Specification Parameters
|
processor |
CPU |
Intel Alder/Raptor Lake U/P/H processor Processor I5-1235U/ |
|
|
chipset |
Intel® SOC |
|
|
BIOS |
Tus qauv AMI 32Mbit txhawb nqa diskless khau raj, network wake{1}}nce, zog- ntawm kev pib, saib xyuas kev ua haujlwm, thiab lwm yam nta. |
|
sab hauv cia |
muaj peev xwm |
2*SO-DIMM DDR4 3200MHz Max64GB |
|
nco |
M.2 |
1x M.2 Ntsiab, txhawb SATA/NVME hloov |
|
ua yeeb yam |
tso zis |
Plaub ib txhij asynchronous zaub Intel Iris Xe Graphices 1*HDMI+1*DP+1*Thunderbolt+1*Type-C 1 × HDMI (Qhov siab tshaj plaws kev daws teeb meem: 3840x2160) 1 × DP (Qhov siab tshaj plaws kev daws teeb meem: 4096 × 2160) |
|
network |
Chip WIFI |
2 x RJ45 chaw nres nkoj, RTL8111H nti, dual Gigabit network phaib 802.11 b/g/n/ac Dual-Band Wi-Fi, Bluetooth 4.2 (yeem) |
|
I/O |
Rov qab I / O interface Pem hauv ntej- kawg I/O interface TF Card suab zaus expansion qhov I/O chips Thaum tshav kub kub Dissipation System |
1 * DC_IN chaw nres nkoj 1 * Thunderbolt 4 chaw nres nkoj 1 HDMI + DP chaw nres nkoj 2 LAN chaw nres nkoj 2 USB 2.0 ports 1 * PWRBTN khawm nrog qhov taw qhia teeb 1*Reset&C_CMOS khawm 1 * MicroSD daim npav qhov 1 * Hom -C chaw nres nkoj 2 USB 3.2 Gen 2 (10 Gbps) ports 1 * Kab Tawm & Mic Hauv 2-hauv-1 chaw nres nkoj 1 × TF card Ntawm -board ALC897 audio decoding controller; 1 * M.2 E Ntsiab, txhawb Wifi6/Bluetooth module nthuav; IB8613E turbine radiator |
|
qhov chaw |
muab hluav taws xob |
Fais fab mov: DC 19V / Hom-C (siv hom -C adapter nrog lub zog ntsuas ntawm 100 W lossis siab dua) |
|
saib xyuas |
tso zis paj ntaub |
Interrupt, system reboot Theem 255 Lub Sijhawm Sijhawm Sijhawm |
|
Lub cev Parameter |
qhov loj |
127mm * 127mm * 44mm |
|
ib puag ncig |
kub av noo |
Ua haujlwm kub: -10 ~ 50 ℃; Cia kub: -20 ℃ ~ 75 ℃ Tus txheeb ze humidity: 0% mus rau 95%, tsis muaj condensation |
|
kev khiav hauj lwm qhov system |
tsab |
Win10 64-bit, Win11 64-bit, Ubuntu, CentOS, thiab lwm yam. |
|
nto |
khoom zoo xim |
Yas Tsaus Grey (Customizable) |
|
Posthumous Certificate |
Daim ntawv pov thawj kev nyab xeeb |
Ua raws li qhov yuav tsum tau muaj ntawv pov thawj xws li CCC thiab RoHS |
Cov ntaub ntawv xaj
|
Muag qauv |
piav |
|
AOS-NUCAUI81SZ |
Intel I3 1215U, 1.2 GHz, 4 GB RAM, 128 GB SSD |
|
AOS-NUCAUF81SZ |
Intel I5 1240P/12450H/1235U processor, 4GB RAM, 128GB SSD Intel i5 1340P/13450H/1335U processor, 4GB RAM, 128GB SSD |
|
AOS-NUCAUJ81SZ |
Intel I7 1260P/12700H/1255U processor, 4GB RAM, 128GB SSD Intel i7 processor (qauv 1360P / 13620H / 1355U), 4GB RAM, 128GB SSD |
daim ntawv thov cheeb tsam
Nws yog qhov tsim nyog rau ntau yam kev siv xws li kev thauj mus los ntse, kev tswj hwm kev lag luam, digital signage systems, kev kawm, tsev noj mov, tsev so, khw malls, kev sib tham hauv tuam txhab, thiab tsoomfwv cov phiaj xwm kev pom tseeb.
AFQ
1. Dab tsi CPUs tau txais kev txhawb nqa hauv NUC Mini PC no?
Nws txhawb IntelAlder Lake thiab Raptor Lake U / P / H series processors.
2. Nws tuaj yeem txhawb nqa ntau npaum li cas?
Nws txhawbmus txog 4 qhov kev ua haujlwm ywj pheejntawm HDMI, DP, Thunderbolt, thiab Hom -C.
3. Kuv puas tuaj yeem hloov lub cim xeeb thiab khaws cia?
Yog lawm. Nws txhawbDDR4 3200MHz dual-channel nco txog 64GBthiabM.2 NVMe/SATA SSD nthuav dav.
