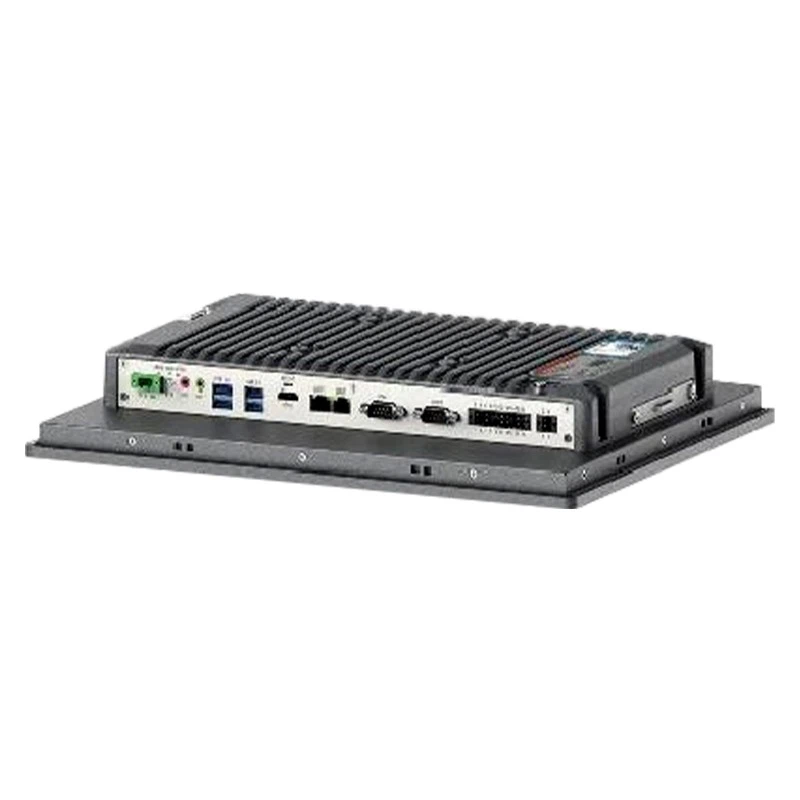

Embedded Kov Vaj Huam Sib Luag Muaj Vaj Huam Sib Luag Tshuab Vaj Huam Sib Luag Tswj Capo
Nyob rau hauv kev nce qib ntawm kev muaj tshuab ua, embedded touchscreen muaj tshwm sim raws li cov khoom siv cov khoom siv rau kev siv lawv tus kheej nrog lub peev xwm muaj zog thiab muaj zog tswj hwm. Cov ntsiav tshuaj no siv Intel Core u series processors, nrog rau cov kev xaiv los ntawm 210 tiam, suav nrog i2} {{{{-3520m, thiab i5-1340p. Cov txheej txheem muaj zog no tuaj yeem khiav nrawm txoj kev tswj software, cov txheej txheem txheej txheem sai sai, thiab ua kom muaj peev txheej ua tau zoo thiab ruaj khov. Piv txwv li, hauv tshuab Tuam Tswj tswj tiag tiag, pub tus nqi rau particly kom ntseeg tau tias feem hloov cov qauv cuab yeej ua tau raws cov qauv.
Cov lus qhia
|
Daim thi viv |
touchscreen |
Lub sij hawm tag nrho - dav hlau 10-point capacitab kov screen, yeem 5-hlau tiv lub vijtsam |
|
qhov loj |
Lub vas sab qhov loj |
7-nti, 8-nti, 10.1-nti, 10.4-nti, 12.1-nti, 13,3-nti, 15-nti, 15.6-nti, 17-nti, 18.5-nti, 19-nti, 21.5-nti, 23.5-inch 4: 3, 16: 9 Piv Txwv |
|
Kev Ntsuam Xyuas Cov Duab |
Teeb meem |
640×480,800×600,1024×600,1024×768,1280×800,1280×1024,1920×1080, 1920×1200 |
|
Vijtsam kub |
Kev khiav hauj lwm kub |
0 ~ 50 DEGREE, -10 ~ 60 DEGREE, -20 ~ 66 DEGREE, -30 ~ 70 DEGREE, -30 ~ 85 degree |
|
ci ntsa iab |
Kev Nciaj Ntsig |
250/300/350/400/450/500/600/600/800/1000 Nits |
|
Kev muab cia |
Kos tau |
Txhawb nqa embedded vaj huam sib luag Installation (qhib loj dua li cov qauv khoom tuaj yeem hloov kho raws li cov neeg siv xav tau) |
|
processor |
Same |
Tub ntxhais - u series i3 / i5 / i5-5300U / I5-5300U / I5-5300U / I5-56110U / I5-5335G7 / i5-1240P / I5-1340P CPU YOOJ YIM |
|
Txoj hau me |
Astel® So kom ceev |
|
|
Bios |
Ami 32mit, txhawb nqa diskless khau, network wake -}}} ntawm khau raj, watchdog thiab lwm yam haujlwm |
|
|
Yam nco txog |
lub peev xwm |
1 × ddr4 yog li - Dimm 2666Memory, qhov ntau tshaj plaws muaj peev xwm 32 G× Ddm 1600 Nco, Muaj Peev Xwm Muaj Peev Xwm 8gb |
|
chaw ntim khoom |
Sata interface Nvme |
1 × m.2280 Sata / NVME SSD SAB TSAWG LUB CAIJ NTUJ FROT, yeem 1 × 2.5-nti Hard Drive Qhov |
|
Kev Tiv Thaiv Qib |
Ms66 |
Los ntawm kev ntxiv cov txheej txheem kua nplaum, lub vaj huam sib luag pem hauv ntej yog cov plua plav thiab dej, thiab qib kev tiv thaiv nce qib siab |
|
qhia |
Chipset tso zis |
Muab HDMI sab nraud zaub interface, txhawb nqa cov zaub sab nraud kom nthuav dav cov vijtsam synchronous lossis asynchronous kov kev ua haujlwm |
|
lub network |
Tws ntoo Wifi |
Peb daim npav gigusit network, Board Edge Intel I219LM, Infilt {}}}} portless functions, thiab ntau cov chaw nres nkoj we} tuaj yeem nthuav dav raws li qhov xav tau |
|
Kev nthuav dav |
Txoj |
1xm.2230 E {{- tus yuam sij, txhawb nqa WiFi module, thiab lwm yam, txhawb nqa 3.3V / 4.0V fais fab muab voltage hloov. Nrog ib daim npav sim, muab 2 × 3pin socket rau sab nraud SIM daim paib ×}} m.2}}} Kuv-} Kuv} |
|
I/O |
USB COM chaw nres nkoj DC nkaus Lub suab |
Default 4 × USB3.2 / 3.0 / 2.0, Ntau USB2.0 tuaj yeem nthuav dav raws li cov kev xav tau Default 2xcom, Yeem Rs232 / 482/485 hom, bios hloov, com interface tuaj yeem nthuav dav raws li cov kev xav tau 1 × dc nkaus Instrumental Realek Alc897 HD Digital Suab Suab seev cev / Kab-} {- hauv 8ω2W Sport |
|
Gpio interface |
Tus gpio |
Mus txog 16 gpios muaj. Cov Qauv GPIOS tuaj yeem yog cov zis tau tawm ncaj qha los ntawm cov motherboard. Optocouder cais thiab Rugged GPIOS muaj. DI txhawb cov contacts qhuav thiab cov neeg sib tham ntub, bidirectional optocouder sib cais, thiab cov tswv yim hluav taws xob txhawb nqa 9-80v dav voltage. NPN thiab PNP hom yog muaj. DI yog siv los lim tawm kev cuam tshuam, thiab tsis ua haujlwm hauv qab 5V. Ua yog Optocouder raug cais thiab ua kom pom tseeb los ntawm OC rooj vag. Cov zis tshaj plaws tam sim no tuaj yeem ncav cuag 500mA. Cov zis voltage nyob ntawm cov khoom hluav taws xob sab nraud .. |
|
chaw nres tsheb ciav hlau |
Lub davhlau ya nyob twg |
IO lub vaj huam sib luag muaj 3.5mm 2 × 2Pin xauv davhlau ya nyob twg thaiv, uas tuaj yeem ua ntej ua ntej tawm hauv lub hoobkas. Lub neej ntawd chaw teeb tsa yog cov chaw taws teeb sw thiab fais fab coj |
|
Kev pab fais fab |
Cov Ntaus Tawm Hluav Taws Xob |
Lockable DC 9-36V dav verfage hluav taws xob muab interface, muab DCJack Round thiab 2pin 5.08mm Kev Khwv Hluav Taws Xob Xaiv 2 lub zog los ntawm |
|
WatchDog |
Khoom uas tsim tau lawm Lub caij nyob nruab nrab |
Cuam tshuam, system rov pib dua 255 qib timer ncua sij hawm |
|
huab cua |
Kub |
Kev Ua Haujlwm Kub: 0 Qib ~ 50 Qib Kev Cia Khoom Kub: -20 ~ 70 Degree 5% ~ 90% tsis -} kev ua yeeb yam |
|
operating system |
Zaj |
Windows 10/11 / Ntau yam qauv ntawm Linux / Tsev System Todxin Kylin, thiab lwm yam. |
|
Ntxuam |
kev tsim ua |
Lub tshuab lub cev raug kaw thiab tso siab rau ntawm txhuas - Creding lub cev ntawm kev ua haujlwm kub, tshem tawm cov kiv cua ib txwm ua rau cov kiv cua thiab cov hmoov av nkag rau hauv lub tshuab. |
|
Lub cev qhov ntev |
15-nti ntsiav tshuaj |
371,4mm (l) x 297.7mm (w) x 60 hli (h) |
Cov ntaub ntawv xaj
|
Qauv Muag Khoom |
Kev teeb tsa |
|
AOS - sphmf82s83j |
CPU: I5-4200M Screen: 8 Nti Nco: 8g Cia: 256G SSD |
|
AOS - spwj82s23S23S23S23S23S23S23S23S23S25 |
CPU: I7-8565U Screen: 12.1 Nti Nco: 8g Cia: 256G SSD |
|
AOS - sptuf82s73j |
CPU: i5-1135g7 npo: 17 nti nco: 8g Cia: 256G SSD |
|
AOS - spauf82s33j |
CPU: i5-1340P Screen: 23.8 Nti Nco: 8g Cia: 256G SSD |
Chaw thov
Siv tau rau kev kawm, cov khw noj mov, tsev so, khw khw, cov rooj sib tham ntawm cov tuam txhab kev nthuav tawm thiab lwm thaj chaw.
