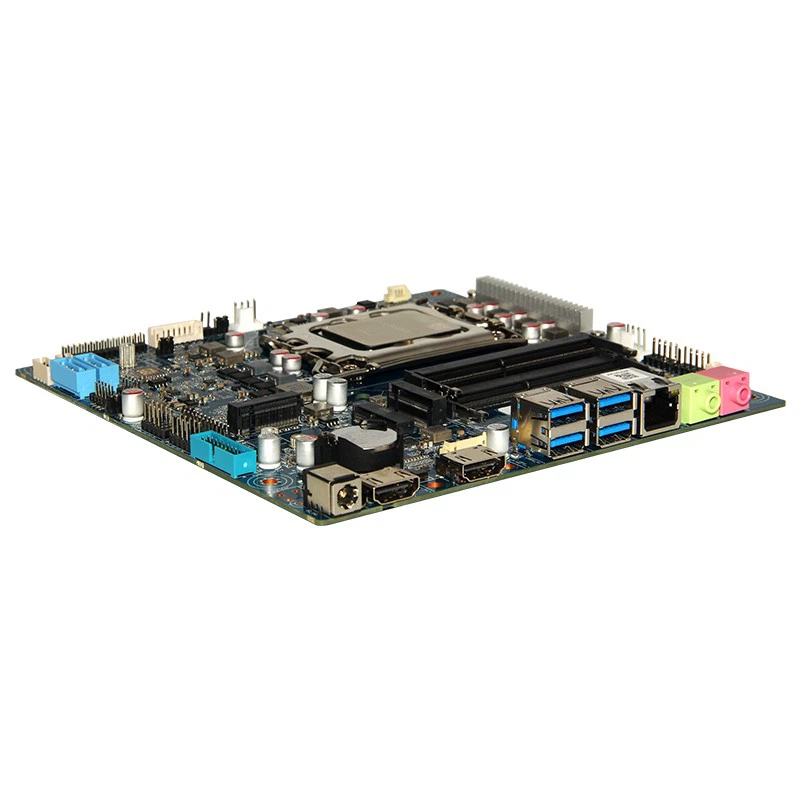

Zhaoxin KX-7000 motherboard ua tau zoo npaum li cas?
Los ntawm kev xav txog kev lag luam, ZHAOXIN KX-7000 motherboard tsis yog tsom rau kev ua haujlwm siab, tab sis hais txog kev sib raug zoo, ntev - lub sijhawm ua haujlwm ruaj khov, thiab ua tiav kev txhawb nqa rau lub tsev ecosystem. Thaum ua ke nrog KX-7000 series CPU, ZHAOXIN KX-7000 motherboard tuaj yeem tswj hwm kev ua haujlwm zoo hauv kev ua haujlwm txhua hnub, kev tshawb nrhiav hauv web, ua cov ntaub ntawv, kev ua yeeb yaj kiab siab, thiab cov haujlwm ua haujlwm dav dav. Lub motherboard's I / O interface layout yog tsim nyog, nws muaj peev xwm nthuav dav txaus kom tau raws li cov kev xav tau ntawm cov lag luam feem ntau cov khoos phis tawj, thiab lub zog tsim hluav taws xob thiab kev siv hluav taws xob tau tswj tau zoo thaum lub sijhawm ua haujlwm ntev. Nws yog qhov tsim nyog dua li lub platform tseem ceeb rau cov chaw ua haujlwm hauv tsev PCs, kev lag luam terminals, thiab kev lag luam PCs, es tsis yog rau cov neeg siv nrhiav kev ua haujlwm siab lossis kev ua haujlwm.
Qhov tshwj xeeb
|
Processor |
CPU |
Txhawb ZhaoXin KX-7000 8 Core 8 xov 3.6GHz CPU Txhawb ZhaoXin KX-7000 6 Core 6 xov 3.2GHz CPU |
|
Chipset |
SOC |
|
|
BIOS |
AMI 32Mbit, Txhawb disk- pib pib dawb, network tsim, lub zog- qhib, thiab saib xyuas haujlwm |
|
|
Nco |
Muaj peev xwm |
4GB 2 × DDR4 3200MHz nco, Max.64GB |
|
Cia |
M.2 SATA |
1 x SATA/PCle 4X Teeb liab M2280 M.2 SSD (Chip Automatic lees paub) 2x SATA3.0 7Pin txheem prot |
|
Zaub |
Zaub Core Tso zis |
CPU Integrated -C1190 HDMI 2.0 (Max: 3840x2160 @ 30Hz) VGA (Max.1920 x 1080 @ 60Hz) LVDS (Max. Max: 1920 x 1080 @ 60Hz) |
|
Internet |
laj |
1x RTL8111H (Yuav xaiv tau ob lub chaw nres nkoj), Txhawb Network sawv-nce thiab PXE khau raj |
|
I/O |
USB 3.0 RJ 45 HDMI Chip / Audio DC |
2x USB 3.2 Gen1+2xUSB3.2 Gen1 (Layout Ethernet Card) 1 × RJ45 chaw nres nkoj (Yuav xaiv tau ob lub chaw nres nkoj) 2 × HDMI Realtek ALC897 / Suab tawm + Mic hauv + Kab hauv 1 × DC |
|
Onboard Function |
USB 3.0 USB 2.0 COM LPT Expansion Interfaces |
2 × USB 3.0 4 × USB 2.0 2 x RS232 / RS485 (yeem xaiv tau) 1 x LPT 1x M.2 2230, Txhawb WIFI/BT 1x M.2 3042/3050 Txhawb 4G/5G, tuaj yeem dhau mus rau BIOS Updata Spport M.2 SATA SSD |
|
Lub zog |
Tswv yim Rated zog noj |
DC 12 ~ 19V 90W |
|
Saibtus dev |
Tso zis ib ntus |
Lub kaw lus rov pib dua. Txheej txheem 255 theem sijhawm ncua sijhawm |
|
Lub cev parameter |
Loj |
170mm (L) x 170mm (W)) |
|
ib puag ncig |
Kub Cov av noo |
Kev khiav hauj lwm kub: 0 degree ~ 50℃Cia kub: -20℃~ 70 degree 5% mus rau 90% tsis muaj condensation |
|
Kev khiav haujlwm |
Versions |
Yeej 10/11; Linux (Centos, Ubuntu, Fedora, NeoKylin, UOS) |
|
Txias |
Txoj kev |
Cua sov dab dej & Ntxuam |
Ordering Information
|
Muag |
piv txwv |
|
AOS-MMZX700D |
KX-7000 8 Core 8 thread 3.6GHz CPU, KX-7000 6 Core 6 thread 3.2GHz CPU (Yeem) |

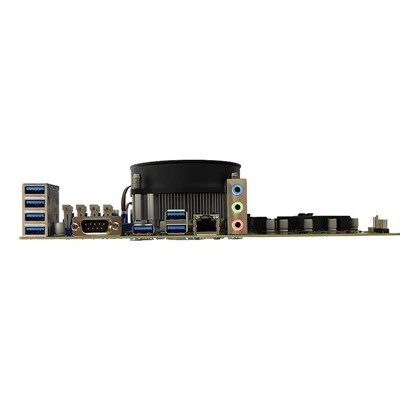

Daim duab duab
Qhov chaw thov
Daim ntawv thov rau Industrial automation, tshuab lub zeem muag, kev thauj mus los ntse, thiab kev lag luam qhia (kev kawm, khw muag khoom, tsoomfwv, kev sib tham)
